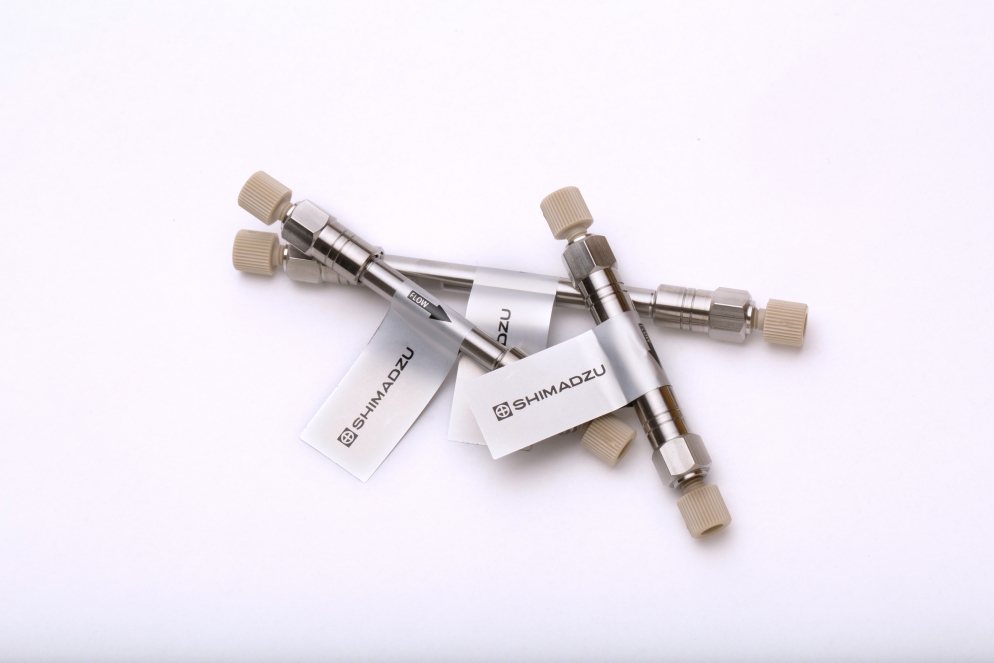

SHIM-PACK XR

Shim-pack XR-ODS III (2.2 um, 2.0 mm I.D. x 200 mm)

Part Number: 228-59910-92

Particle size (µm): 2.2

ID (mm): 2

Length (mm): 200

USP: L1

Functional Group: C18

Mode: Reversed Phase

Type: Analytical column

Pore size (nm): 8

Surface Area (m2/g): 470

End Capping: Yes

Carbon Load (%): 20

PH: 2 - 7.5

Pressure Tolerance (MPa): 100

Pack size: 1

Column Name: XR-ODS III

Lead Time: 4 - 6 weeks

While the Shim-pack XR-ODSII and XR-ODS III use the same 2.2 μm packing particle size as the Shim-pack XR Series columns, they have higher 60 and 100MPa pressure tolerance. This allows them to achieve high-resolution fast analysis in a long column using a water/methanol mobile phase. This column significantly extends the range of applications of high-resolution fast analysis to include analysis near room temperature. The Shim-pack XR-ODSII and XR-ODS III columns are ideal for the Nexera UHPLC or Prominence UFLC. This combination achieves both faster speed and higher resolution.

Extensive product range, including 1.5 mm I.D. column to reduce mobile phase consumption

The Shim-pack XR-ODS II range includes a 1.5 mm I.D. model in addition to normal 2 mm and 3 mm I.D. columns. With an optimal flow rate of 0.2 to 0.3 mL/min, the 1.5 mm I.D. column offers the optimal flow rate for LC/MS and reduces mobile phase consumption.

Select a column to suit your purpose, whether shorter analysis times or high resolution

The Shim-pack XR-ODS III lineup features two columns: a short one utilizing a packing material with a particle size of 1.6 μm and a long one utilizing a 2.2 μm particle size, which is equivalent to the conventional XR column. This extensive lineup allows users to select a column according to analysis objectives, whether it's a short size to further shorten analysis times, or a long size to achieve high resolution while retaining the ease of use of the conventional XR column.
