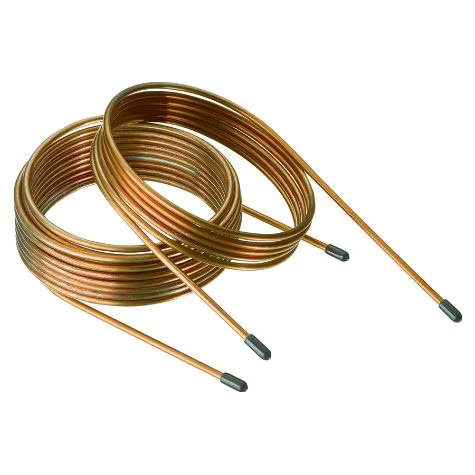

Packed Columns


For customised packed/micropacked stainless steel or glass columns, please request a quote.

Product Listing

Singapore’s Leading Supplier of Packed Column for GC

Shimadzu is the leading supplier of custom packed columns for your gas chromatography needs in Singapore. We are a global brand that provides high-quality laboratory consumables, including custom GC packed columns, for customers from different industries such as pharmaceutical, chemical, forensic, food and agriculture, environmental, and more.

Packed Columns vs Capillary Columns

Packed and capillary columns have different designs, which affect their separation performance, sample capacity and applications.

A packed column is shorter in length and larger in diameter. It is fully packed with porous solid particles or solid particles coated with a layer of liquid stationary phase. Packed columns generally produce broader peaks, resulting in lower sensitivity and resolution.

Capillary columns are longer and much narrower in diameter. They use an open tubular design, with the stationary phase positioned on the inner wall of the capillary. Depending on the column type, this can be a liquid stationary phase in a Wall-Coated Open Tubular (WCOT) column, a porous layer in a Porous-Layer Open Tubular (PLOT) column, or a support-coated particle layer in a Support-Coated Open Tubular (SCOT) column.

Feature

Packed Column

Capillary Column

Resolution

Lower resolution with broader peaks

Higher resolution with sharper peaks and better separation

Sample capacity



Higher sample capacity and can handle larger sample volumes

Lower sample capacity, particularly with narrow-bore columns

Typical flow rate



Generally supports higher carrier-gas flow rates

Uses lower, optimised flow rates based on column diameter and linear velocity

Best-suited analytes

Useful for gas analysis, larger sample volumes and some established analytical methods

Better suited to complex mixtures, trace analysis and applications requiring high resolution and sensitivity

Relative cost

Often available as custom-made columns, with cost depending on the required materials and specifications

Cost varies by column type, dimensions and stationary phase; specialised capillary columns can be more costly

Capillary columns are generally the better choice for complex mixtures where high resolution and sensitivity are priorities.

When to Use a Packed Column

Packed columns are useful when sample capacity, established methods or specific packing materials are important.

  • Permanent Gas Analysis: Packed columns are well suited to analysing permanent gases such as oxygen, nitrogen, carbon monoxide and carbon dioxide. Different packings are selected depending on the gases being separated, with molecular sieve packings commonly used for oxygen, nitrogen and carbon monoxide.
  • Light Hydrocarbon Separations: Packed columns are used for separating light hydrocarbons in applications such as natural gas analysis.
  • High Sample Capacity or Preparative Applications: Their larger internal diameter allows them to accommodate larger sample loads when capacity is more important than maximum resolution.
  • Legacy and Regulated Methods: A packed column is appropriate when an established or regulated analytical method specifically requires one.
  • Packings Not Available in a Suitable Capillary Format: A packed column can be useful when the required packing or stationary phase is not available in a suitable capillary format.

Selecting your Custom GC Packed Column

When selecting a packed column for gas chromatography, you must consider the stationary phase, column length, column ID, and particle mesh size. These factors can affect separation performance when analysing compounds by influencing retention, resolution and the efficiency of separating individual components in a sample. Shimadzu offers a wide range of solid support and liquid phases to meet your packed column requirements.

Custom Packed Column in Singapore from Shimadzu

Shimadzu offers comprehensive customisation services for GC packed columns to meet specific analytical needs. Customers can customise their packed columns with a wide range of options based on a solid support material, column dimensions, coated stationary phase, and mesh size.

Tailored Packed Columns for Precise GC Analysis

Shimadzu offers customised packed columns tailored to the requirements of different GC applications. A column designed around the specific sample and GC method can support effective separation, consistent retention and reliable analytical performance. This helps ensure the column is suited to the demands of your analysis.

Wide Variety of Solid Support Materials

Our customised packed columns allow you to choose from various solid support materials, ensuring compatibility with your target analytes and separation requirements. The selection includes materials such as Porapak, Tenax, HayeSep, and Molecular Sieve, each offering specific advantages and characteristics for different applications. We can customise the packed column with the ideal solid support material to achieve optimal results, whether you require high thermal stability, exceptional adsorption capacity, or specific selectivity.

Column Dimensions to Match Your Requirements

The dimensions of a packed column play a crucial role in achieving efficient separation and resolution. You can specify and customise the packing material's desired diameter, length, and particle size. By tailoring the column dimensions to match your requirements, you can optimise the efficiency of your GC analysis, achieve the desired peak resolution, and improve overall analytical performance.

Coated Phases for Enhanced Selectivity

Shimadzu's customised packed columns also offer the option to choose the most suitable coated phase for your specific application. Coated phases provide additional selectivity in separation, allowing for better resolution of complex sample mixtures. Whether you require nonpolar, polar, or specialised phases, we can customise the packed column with the coating that best meets your analytical needs, ensuring accurate identification and quantification of target analytes.

Mesh Size Selection for Optimal Performance

The mesh size of the packing material is another critical factor in achieving desired separation efficiency. Our customised packed columns let you select the right mesh size to match the analyte size, sample matrix, and analysis requirements. By choosing the optimal mesh size, you can improve the resolution and sensitivity of your GC analysis, ensuring more accurate and reliable results.

Request for a Custom Packed Column Quotation

Packed columns remain essential for many GC applications. ShopShimadzu offers reliable gas chromatography consumables, including packed columns for various analytical needs. For a high-quality custom GC packed column, get a quotation today by simply filling in our request form. Our customer service will inform you via email with a quotation for your custom packed column.

When requesting a quotation, provide the column dimensions, packing description, liquid phase, solid support and mesh size. You can also specify the tubing type, main instrument and model, preconditioning requirements and any special instructions.

Response times can vary depending on the custom column specifications. Confirm the expected quotation timeline with Shimadzu when submitting your request.

View our consumables catalogue to view our other products, including GC columns, HPLC columns, reversed phase chromatography columns, and more.

Frequently Asked Questions About Custom Packed Columns

1. What is the difference between a capillary column and a packed column?

Packed columns are shorter and wider, while capillary columns are longer and narrower, with the stationary phase coated on the inner wall.

2. Should I use stainless steel or glass packed columns for GC?

Glass may seem breakable but it is a standard operating procedure to use a glass custom packed column when you are working with biochemicals and pesticides. It is recommended when separating compounds that tend to bind to the walls of a stainless steel column. A stainless steel packed column for GC, on the other hand, offers more durability as it won’t break during transport. It can run at higher flow rates and withstand higher pressure.

3. What mesh size should I choose for my packed column?

Choose the mesh size recommended for your packing and application. Common options include 60/80 and 80/100 mesh, but the appropriate size depends on the separation requirements and column specifications.

4. What is the typical lifetime of a packed column, and how is it conditioned?

A packed column’s lifetime depends on the packing, sample type, operating conditions and maintenance. Conditioning typically involves purging with carrier gas and gradually heating the column according to the manufacturer’s instructions.
