228-20810-92

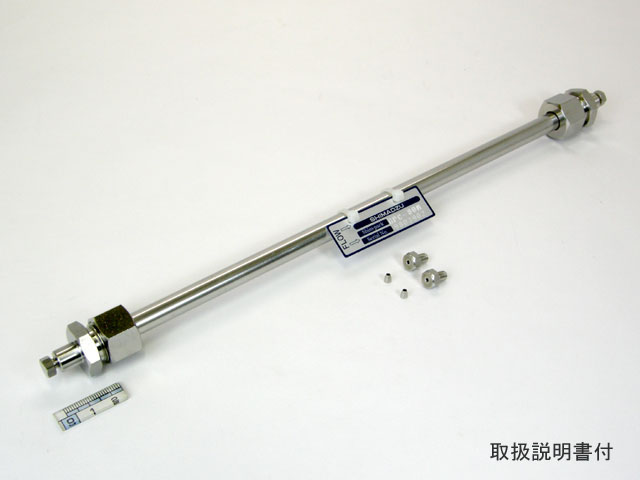

Shim-pack GPC-80MC

Part Number: 228-20810-92

Particle size (µm): 10

ID (mm): 8

Length (mm): 300

USP: L21

Functional Group: PS-DVB

Mode: SEC, GPC

Type: Analytical column

Guard Column: 228-20812-92

Pore size (nm): 1000

Pressure Tolerance (MPa): 3.5

Pack size: 1

Lead Time: 4 - 6 weeks

Shim-pack GPC series columns are used for the determination of tetrahydrofuran (800 Series), chloroform (800C Series), and dimethylformamide (800D series).
The technique of GPC does not utilize such chemical reactions as partition, adsorption, and ion exchange, but a physical reaction consisting of a separation based on molecular size of the sample components. Therefore, this method is suitable for the measurement of molecular weight distribution of high polymers and oligomers.
Shim-pack GPC series are packed with polystyrene polymers with respective degrees of cross-linking in order to meet exact analysis requirements, ranging from analysis of high polymers to that of oligomers. GPC-80M (80MC, 80MD) are mixed gel columns.

Analysis Examples
