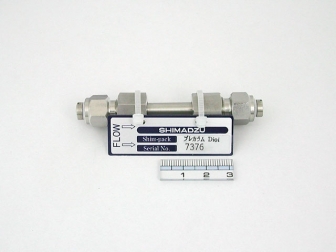

Shim-pack Diol-300, 5um 7.9 x 250mm

Part Number: 228-14776-91

Particle size (µm): 5

ID (mm): 7.9

Length (mm): 250

USP: L20, L59

Functional Group: Diol

Mode: SEC, GFC

Type: Analytical column

Guard Column: 228-16367-91

Pore size (nm): 30

PH: 2 - 8

Pressure Tolerance (MPa): 2

Pack size: 1

Lead Time: 4 - 6 weeks

Shim-pack Diol series is a kind of gel filtration chromatography (GFC) column. GFC is used to separate water-soluble high polymers such as polysaccharides, proteins, and nucleic acids according to their molecular sizes by using hydrophilic packing materials and aqueous mobile phase.
Shim-pack Diol series is packed with porous spherical silica gel chemically bonded with a hydroxyl group. Due to the hydrophilic hydroxyl group, Shim-pack Diol series can be used in high-speed GFC and provide sharp peaks during the analysis of protein and biochemicals (such as enzymes).

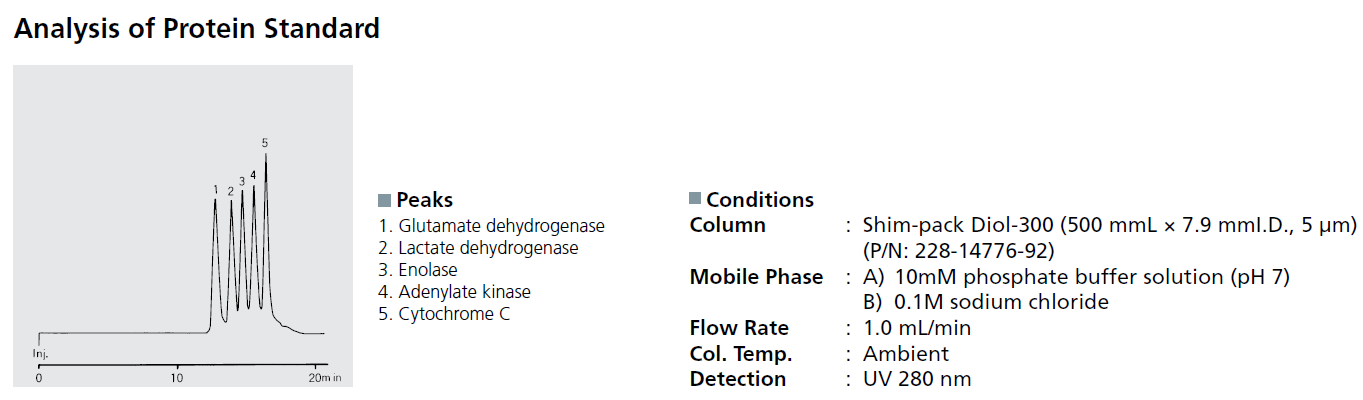

Analysis Example:
