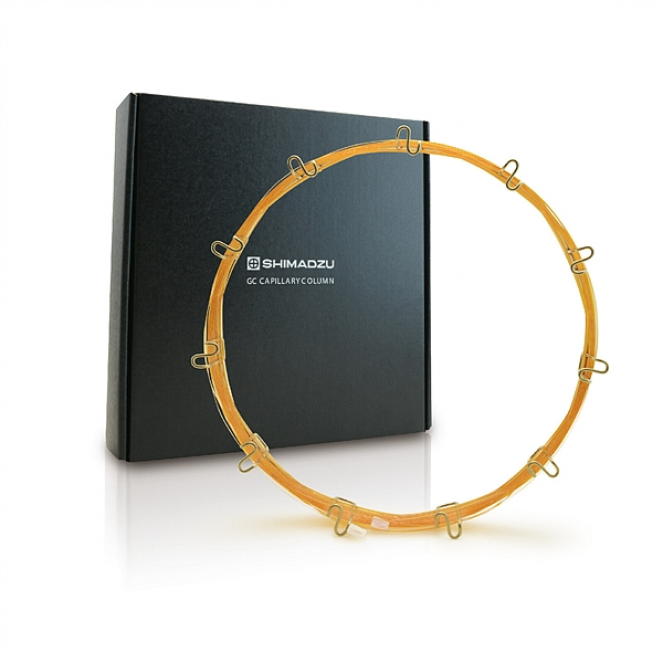

SH-502.2 Cap. Column 0.32mm, 1.80μm, 105m

Part Number: 227-36341-02

Length (m): 105

ID (mm): 0.32

Film thickness (µm): 1.8

Phase: SH-502.2

Composition: diphenyl / dimethyl polysiloxane

Temp. Range (℃): -20 to 250/270

Max. Temp (℃): 250/270

Content: 1 pc

Lead Time: 3 - 5 weeks

  • Application-specific columns with unique selectivity for volatile organic pollutants. The SH-502.2 column is cited in U.S. EPA Method 502.2 and in many gasoline range organics (GRO) methods for monitoring underground storage tanks.
  •  Excellent separation of trihalomethanes; ideal polarity for light hydrocarbons and aromatics.
  • Similar phase: DB-502.2


The SH-502.2 column will enable you to quantify all compounds listed in U.S. EPA methods 502.2 or 524.2, whether you use a mass spectrometer or a PID in tandem with an ELCD. The diphenyl/dimethyl polysiloxane based SH-502.2 stationary phase provides low bleed and thermal stability to 270 °C. A 105-meter column can separate the light gases specified in EPA methods without subambient cooling. Narrow bore columns can interface directly in GC/MS systems.
