SH-PolarWax-MS 0.32mm, 0.25μm, 30m

Part Number: 227-36322-03

Length (m): 30

ID (mm): 0.32

Film thickness (µm): 0.25

Column Specification: General-purpose

USP: G14, G15, G16, G20, G39

Phase: SH-PolarWax-MS

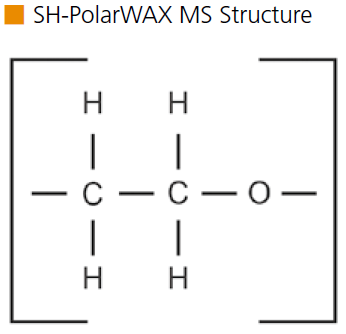

Composition: Crossbond polyethylene glycol

Polarity: Polar

Temp. Range (℃): 40 to 250/260

Max. Temp (℃): 250/260

Content: 1 pc

  • High-polarity, stable polyethylene glycol (PEG) stationary phase.
  • Low bleed and rugged enough to withstand repeated temperature cycles without retention time shifting.
  • Ideal for food, flavor, fragrance, and industrial chemical and solvent analysis.
  • Temperature range: 40 °C to 250/260 °C.
  • Equivalent to USP G14, G15, G16, G20, and G39 phases.
  • Similar phases: VF-WAXms, TR-WaxMS

The SH-PolarWax MS column ensures reproducible retention times from run to run, even with temperature cycling. When methods require trace analysis, this highly polar, low-bleed stationary phase produces excellent signal-to-noise levels! Ideal for food and flavor analysis (e.g., essential oils), fragrance and allergen analysis, as well as industrial solvent and chemical analysis.
