Shim-pack_Scepter_cartridge

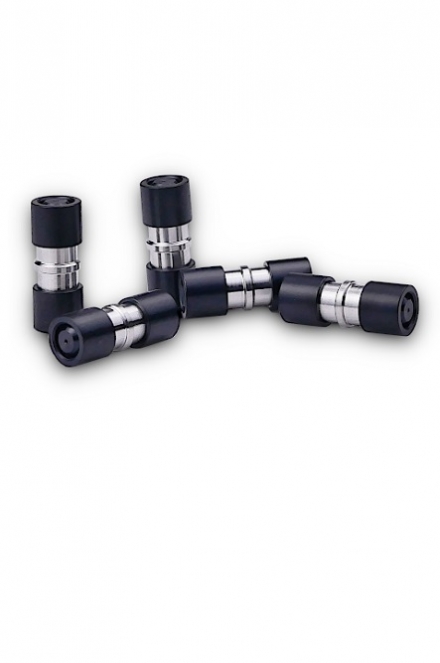

Shim-pack Scepter C4-300 (G), 5um, 2.1x20, 5pcs

Part Number: 227-31191-02

Particle size (µm): 5

ID (mm): 2.1

Length (mm): 20

USP: L26

Functional Group: C4

Mode: Reversed Phase

Type: Guard column

Guard Column Holder: 227-31172-04

Pore size (nm): 30

End Capping: Yes

Carbon Load (%): 9

PH: 1 - 10

Pressure Tolerance (MPa): 45

Pack size: 5

Column Name: Scepter C4-300

Lead Time: 4 - 6 weeks

Shim-pack Scepter C4-300 (G), 5um, 2.1x20
