Scepter_1

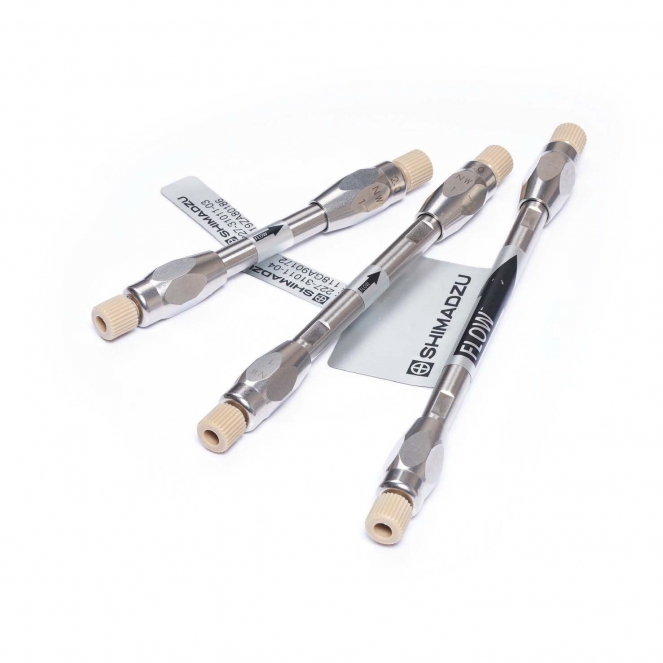

Shim-pack Scepter C4-300, 5um, 30x75

Part Number: 227-31186-02

Particle size (µm): 5

ID (mm): 30

Length (mm): 75

USP: L26

Functional Group: C4

Mode: Reversed Phase

Type: Preparative columns

Guard Column: 227-31196-01

Guard Column Holder: 227-31171-03

Pore size (nm): 30

End Capping: Yes

Carbon Load (%): 9

PH: 1 - 10

Pressure Tolerance (MPa): 30

Pack size: 1

Column Name: Scepter C4-300

Lead Time: 4 - 6 weeks

Shim-pack Scepter Preparative Columns

Shim-pack Scepter C4-300 is wide-pore organic silica hybrid reversed phase columns recommended for the separation of proteins such as monoclonal antibodies and mid-sized molecules such as oligonucleic acids and peptides that may not be retained on 100-120Å pore size columns due to size-exclusion effects. The organic silica hybrid base material is highly stable even at high temperatures under acidic and basic mobile phase conditions. Pore sizes are optimized for large molecular weight compounds and dispersed uniformly in the column, resulting in symmetrical peak shapes and increased resolution of antibodies and nucleic acids compared to a smaller pore size column. Shim-pack Scepter C4-300 is also effective for high-sensitivity LC/MS analysis, producing good peak shapes even under weak ionpairing conditions using a formic acid mobile phase

Monoclonal Antibody Subunit Analysis
