Bio Diol_150mm_1
Bio Diol_150mm_1

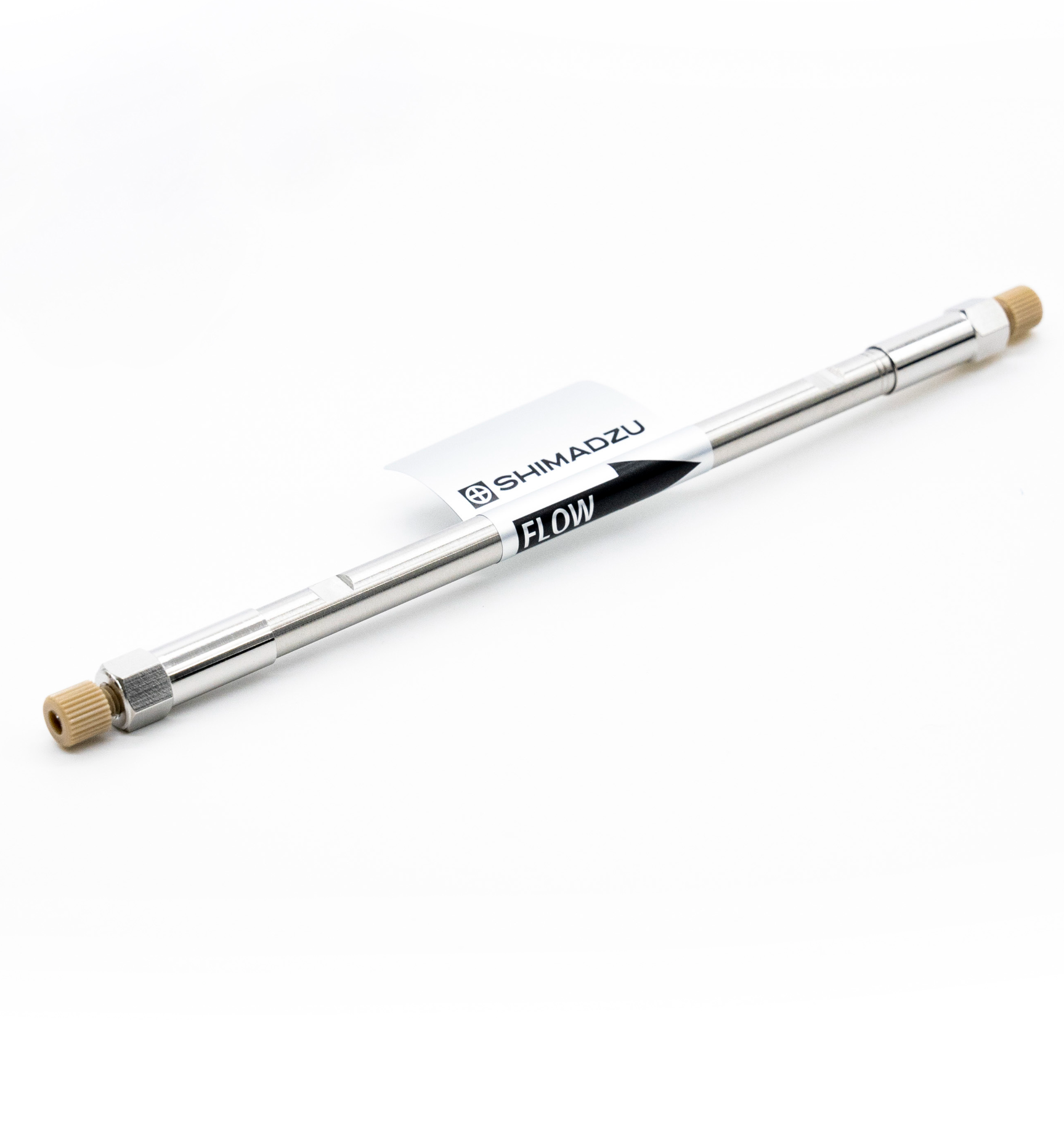

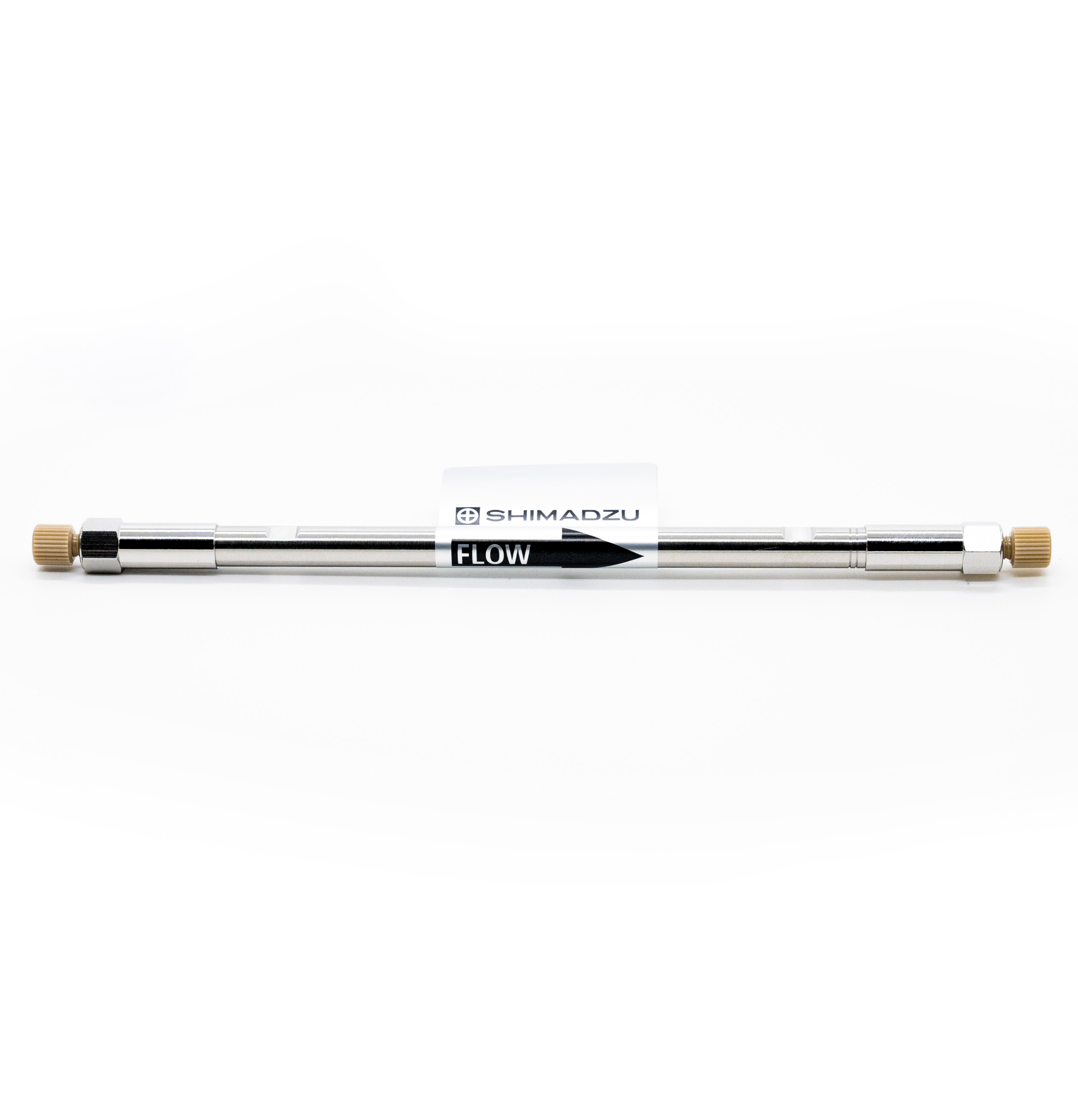

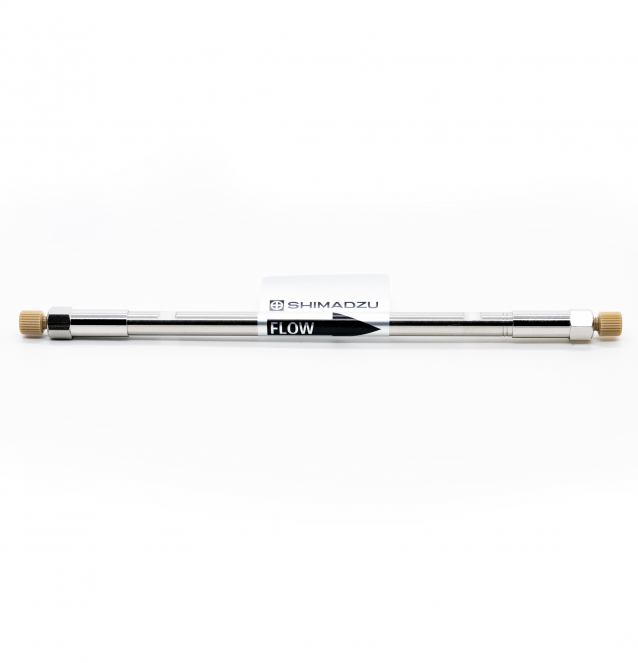

Shim-pack Bio Diol-200, 2um, 4.6x150

Part Number: 227-31009-01

Login to view price
OUT OF STOCK
CHECK AVAILABILITY

Particle size (µm): 2

ID (mm): 4.6

Length (mm): 150

USP: L20, L33, L59

Functional Group: Diol

Mode: SEC, GFC

Type: Analytical column

Pore size (nm): 20

PH: 5 - 7.5

Pressure Tolerance (MPa): 45

Pack size: 1

Column Name: Bio Diol-200

Lead Time: 4 - 6 weeks

With different pore sizes, Shim-pack Bio Diol LC columns are effective for analysis of aggregates and fragments of mAb, oligonucleotides and carbohydrates. By reducing the particle size from 5μm to 2μm, the resolution between aggregates and monomers was greatly improved. Furthermore, by reducing the column length from 300mm to 150mm using a 2μm particle, 50% less run time was achieved, while maintaining resolution as compared to the original method that used a 5μm, 4.6 × 300mm column.
