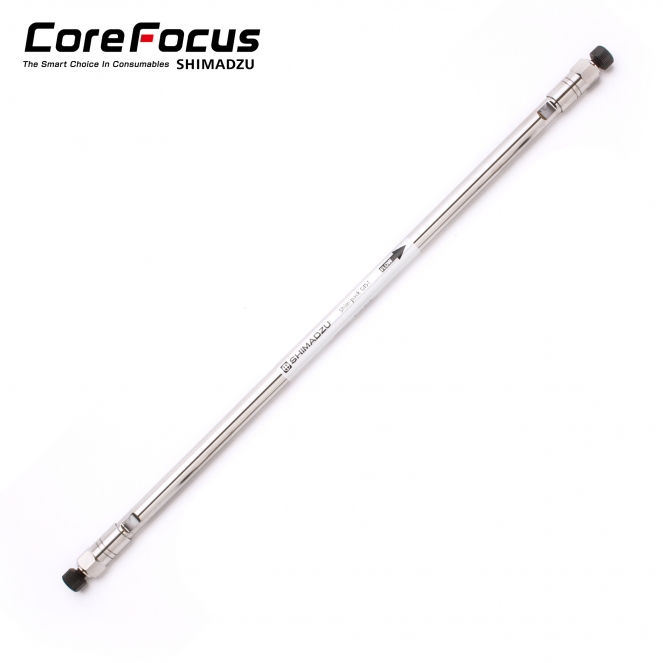

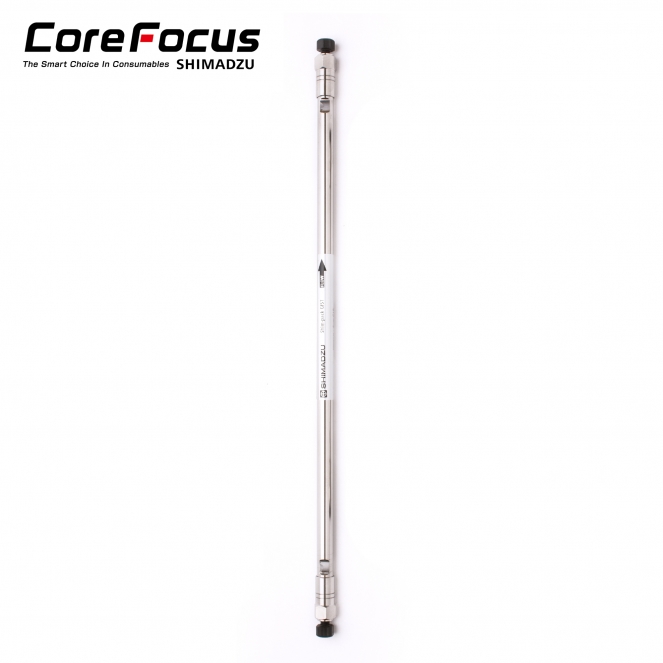

Shim-pack GIST NH2, 5um, 4.6x250

Part Number: 227-30302-08

Particle size (µm): 5

ID (mm): 4.6

Length (mm): 250

USP: L8

Functional Group: NH2

Mode: Normal Phase, HILIC

Type: Analytical column

Guard Column: 227-30315-01

Guard Column Holder: 227-30532-01

Pore size (nm): 10

Surface Area (m2/g): 350

End Capping: No

Carbon Load (%): 7

PH range: 2 - 7.5

Pressure Tolerance (MPa): 20

Related item: 227-30315-02

Pack size: 1

Column Name: GIST NH2

Guard Column set: 227-30315-02

Ideal for Sugar Analysis

New high-purity porous spherical silica chemically bonded with the aminopropyl group ensures the superior stability of Shim-pack GIST NH2. It is capable of the analysis of vitamin E or simultaneous analysis of sugars that are hard to separate in reversed phase mode. In addition, due to being primarily amine-bound, Shim-pack GIST NH2 can analyze sugars with no separation of anomers, even under low-temperature conditions.
Furthermore, Shim-pack GIST NH2 delivers highly reliable reproducibility and stability with accurate qualitative and quantitative results.
