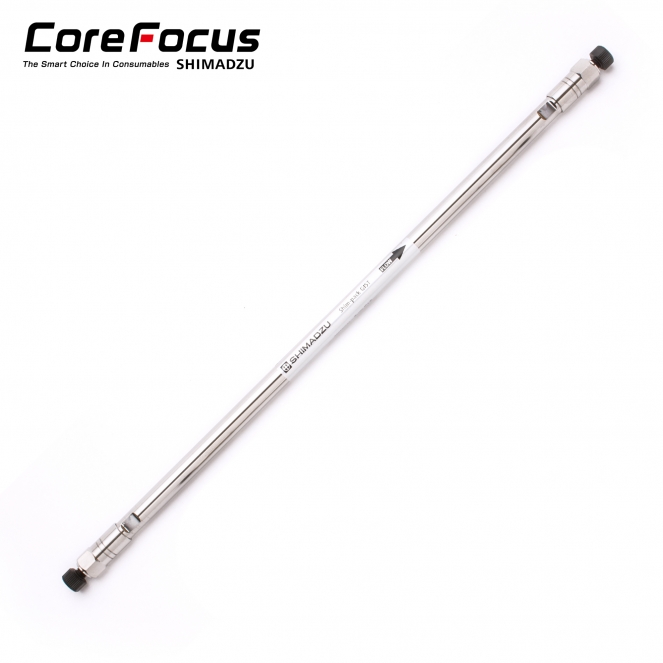

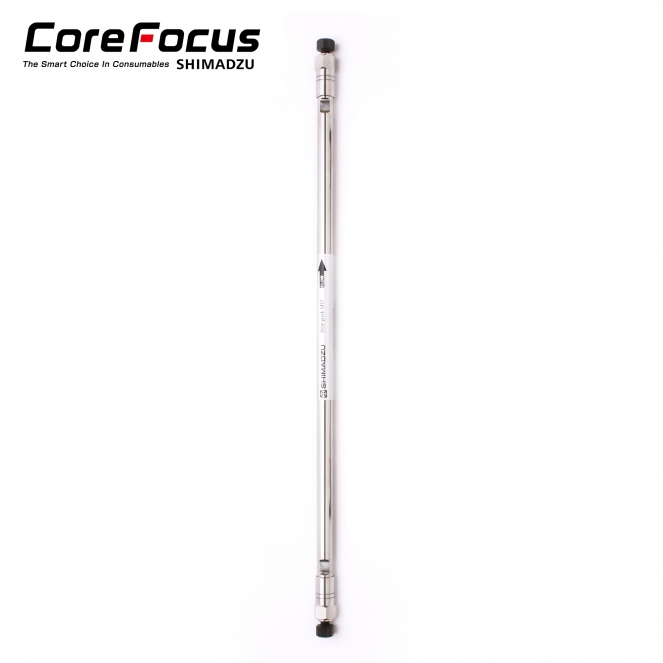

Shim-pack GIST Phenyl, 5um, 4.6x250

Part Number: 227-30220-08

Particle size (µm): 5

ID (mm): 4.6

Length (mm): 250

USP: L11

Functional Group: Phenyl

Mode: Reversed Phase

Type: Analytical column

Guard Column: 227-30236-01

Guard Column Holder: 227-30532-01

Pore size (nm): 10

Surface Area (m2/g): 350

End Capping: No

Carbon Load (%): 10

PH range: 2 - 7.5

Pressure Tolerance (MPa): 20

Related item: 227-30236-02

Pack size: 1

Column Name: GIST Phenyl

Guard Column set: 227-30236-02

The extremely unique phase characteristics of Shim-pack GIST Phenyl are critical to resolving compounds that could not be separated with a C18 or C8 phase column.

In addition to π-π interactions, Shim-pack GIS Phenyl provides hydrogen bonding secondary interactions, which results in retaining polar compounds at the same time. As the phenyl groups are directly bonded to the silica gel, Shim-pack GIS Phenyl is also capable of the analysis of structural isomers due to its high stereo-selectivity.

Analysis Example
