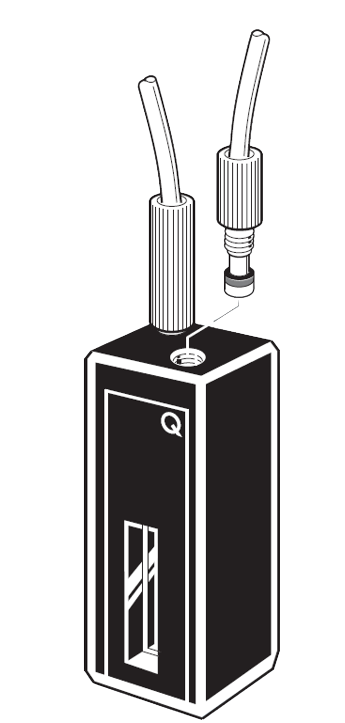

0.1mm Flow cell

Part Number: 226-89021-01

Type: Quartz

Cover: PTFE Lid

Light path /mm: 0.1

Maximum volume /uL: 41

External Dimension (Dia. x L)/ mm: 12.5 x 12.5 x 45

Pack size: 1

Z-height: 15

Lead Time: 2 - 4 weeks

  • Two polished windows.
  • Long aperture.
  • Path lengths of 0.5mm or less incorporate by-pass tubes to avoid back pressure and assist laminar flow through the sample compartment.
  • The PTFE inlet and outlet tubes are connected into the flow cell with a M6 threaded connector.
  • Profiled sample compartment to optimise flow characteristics, reduces carry over and bubble retention.
