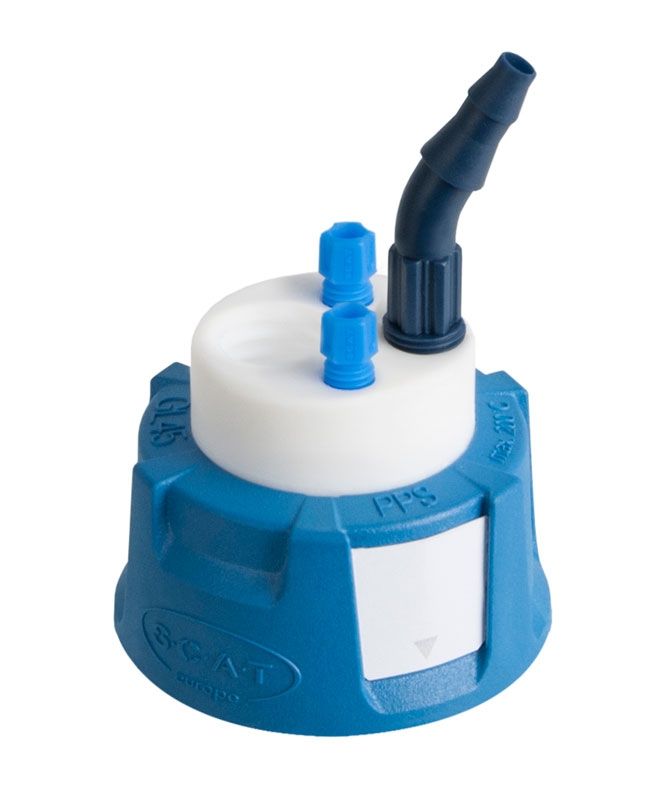

Waste Cap, GL45, 1pc

Part No.: 226-50401-00

This solvent disposal kit ensures safe solvent disposal at your HPLC. The exhaust filter binds solvent vapours and ensures occupational safety in your laboratory. The kit includes: 1 x Safety Waste Cap, GL45 2 x PFA fitting 2.3 mm OD 2 x PFA-Fitting 3.2 mm OD 1 x PP tube connector 5.0 - 11.5mm ID 1 x GL14 connection for exhaust filter 1 x canister, 5L, PE-HD 1 x exhaust filter M, with splash guard and change indicator   Thread size: GL45 No. of tube connections: 1 No. of capillary connections: 2 Fitting 2.3mm: 2 Tube connector 5.0-11.5mm: 1 Fitting 3.2mm: 2 Blind plug capillaries: 2 Exhaust filter M: 1 Labeling field: Yes UN approval: Yes Capacity (litres): 5,00

Part No.: 226-50401-72

The exhaust filter with three layers of activated carbon protects you and your environment, and at the same time ensures occupational safety: With an internal adsorption surface of 1,500m²/g and a CTC adsorption of >90%, the SCAT activated carbon is the most powerful filter medium for solvent vapours. The additional layers bind vapours from acids and alkalis.

Part No.: 226-50401-91

1 piece, to be used on 226-50401-00 Thread size: NPT 1/8" Main material: PP Min. outer diameter (mm): 5.00 Max. outer diameter (mm): 11.50 Tube connector 5.0-11.5mm: 1
