226-50101-02

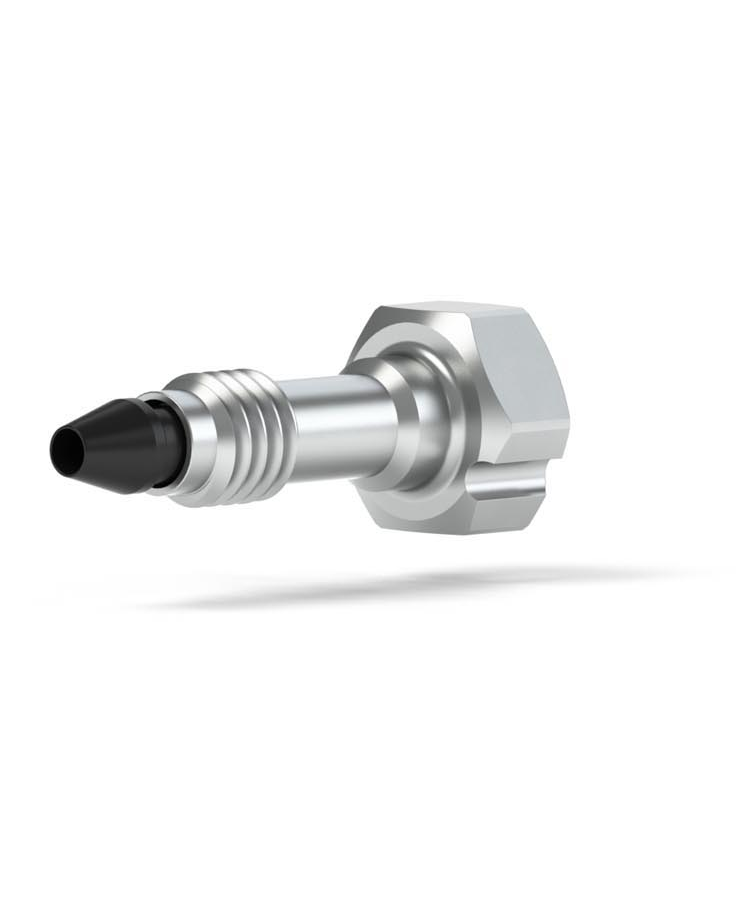

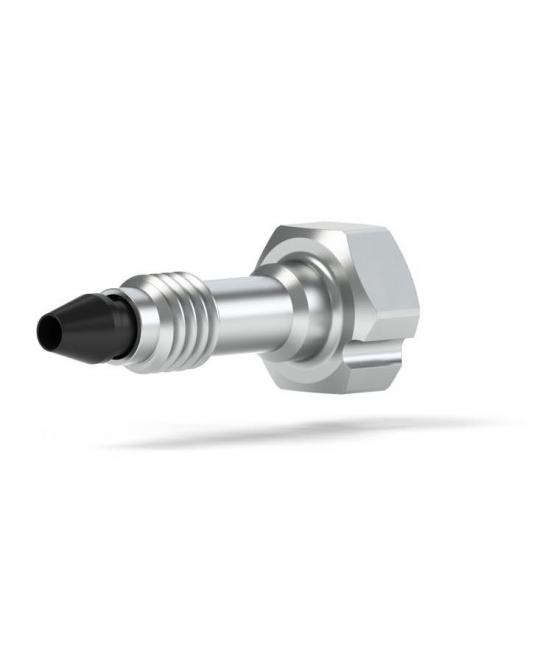

Ultra-High Pressure Fitting. Long bodied version of one above for injection valves.

Part Number: 226-50101-02

Can be reused (re swaged): Yes

Pressure rating: 25,000 psi / 1,720 bar

Spanner tightened: Yes, 8mm hex spanner

Tubing used on: S/S

Suitable for: Particularly suitable for LC injection ports.

One or two piece system: Separate nut and “captured” ferrule.

Pack size: 2

Pressure rating (psi): 25000

Pressure rating (bar): 1720

Lead Time: 2 - 4 weeks

  • Pressure rated up to 25,000 psi (1,720 bar)
  • Capable of up to ten repeat assembly cycles with no impact on pressure holding ability or carry-over;
  • Available in multiple threaded configurations for use with 1/16 in (1.6 mm) and 1/32 in (0.79 mm) OD tubing
  • Materials of construction: Stainless Steel and Proprietary PEEK™ polymer blend (PK)

The fittings are reusable when following the proper tightening torque specification. With a polymer front ferrule, there is no damage to the tubing or receiving port, also increasing the life of these components.
