GC Columns_1

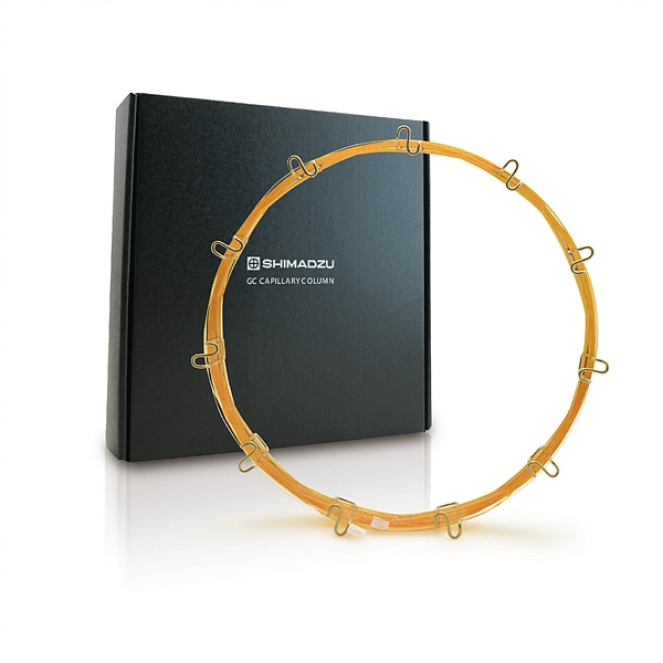

SH-5 Cap. Column 0.25mm, 1μm, 30m w/5 m Integra-Guard Column

Part Number: 221-76179-30

Length (m): 30

ID (mm): 0.25

Film thickness (µm): 1

Column Specification: General-purpose

USP: G27, G36

Phase: SH-5

Composition: Crossbond 5% diphenyl / 95% dimethyl polysiloxane

Polarity: Low polarity

Temp. Range (℃): -60 to 320/340

Max. Temp (℃): 320/340

Content: 1 pc

Remark: with 5 m IntegraGuard Column

Lead Time: 3 - 5 weeks

  • Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
  • General -purpose columns for drugs, solvent impur i t ies, pesticides,hydrocarbons, PCB congeners (e.g., Aroclor mixes), essential oils, semi-volatiles.
  • Equivalent to USP G27 and G36 phases.
  • Similar phases: HP-5, DB-5, CP Sil 8 CB, SPB-5, Rtx-5

Integrated Guard Columns

  • No leaks for a more robust method.
  • No column connections for easier, faster maintenance.
  • No peak distortions due to connector dead volume and thermal capacity.

For column without Integral-Guard Column in this dimension, please refer to 221-75702-30
