GC Columns_1

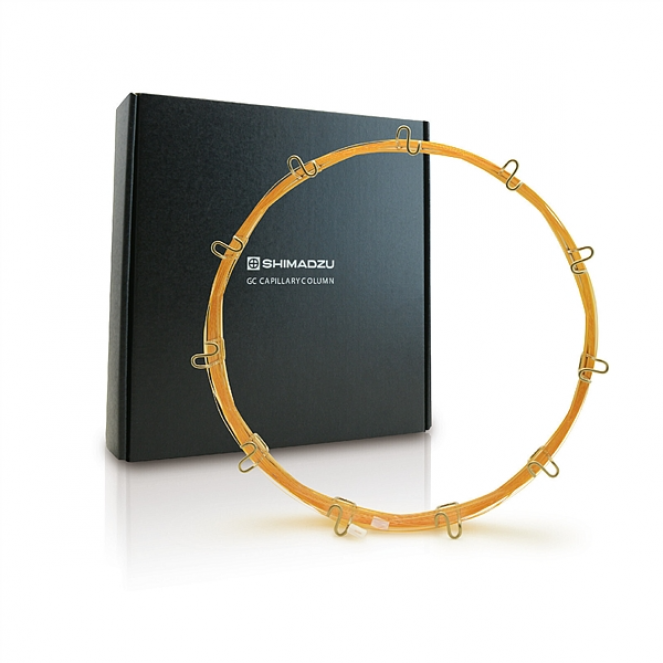

SH-1301 Cap. Column 0.53mm, 3μm, 30m w/5 m Integra-Guard Column

Part Number: 221-76164-35

Length (m): 30

ID (mm): 0.53

Film thickness (µm): 3

Column Specification: General-purpose

USP: G43

Phase: SH-1301

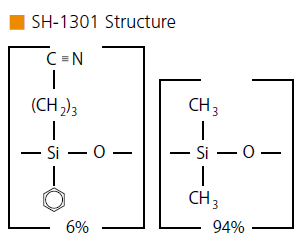

Composition: Crossbond 6% cyanopropylphenyl / 94% dimethyl polysiloxane

Polarity: Mid polarity

Temp. Range (℃): -20 to 240

Max. Temp (℃): 240

Content: 1 pc

Remark: with 5 m IntegraGuard Column

Lead Time: 3 - 5 weeks

  • Mid-polarity phase: Crossbond™ 6% cyanopropylphenyl / 94% dimethyl polysiloxane
  • General-purpose columns for residual solvents, alcohols, oxygenates, and volatile organic compounds.
  • Equivalent to USP G43 phase.
  • Similar phases: DB-1301, CP-1301, SPB-1301, Rtx-1301

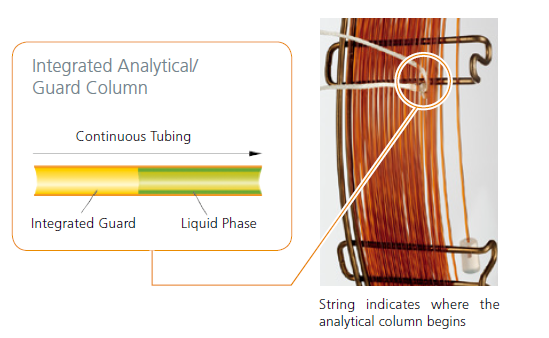

Integrated Guard Columns

  • No leaks for a more robust method.
  • No column connections for easier, faster maintenance.
  • No peak distortions due to connector dead volume and thermal capacity.

For column without Integral-Guard Column in this dimension, please refer to 221-75776-30
