Product Details

221-54778-51_A

NEEDLE NLL-5/23, 5pcs

IN STOCK

Part Number: 221-54778-51

Usage: Gas Analysis

Type: Luer Lock Needle

Needle Tip Style: Bevel

PTFE Tipped Plunger: No

Needle Length (mm): 50

Needle Gauge: 23

Needle OD (mm): 0.63

Luer Lock Syringes with PTFE tipped plunger for Gas Analysis.

Syringe Volume PTFE Tipped Plunger Syringe Barrel OD Syringe P/N Replacement Plunger P/N
1 mL 9 mm 221-54778-01 221-54778-11
5 mL 14 mm 221-54778-02 221-54778-12
10 mL 18 mm 221-54778-03 221-54778-13
25 mL 27 mm 221-54778-04 221-54778-14
50 mL 32.8 mm 221-54778-05 221-54778-15
100 mL 40.8 mm 221-54778-06 221-54778-16

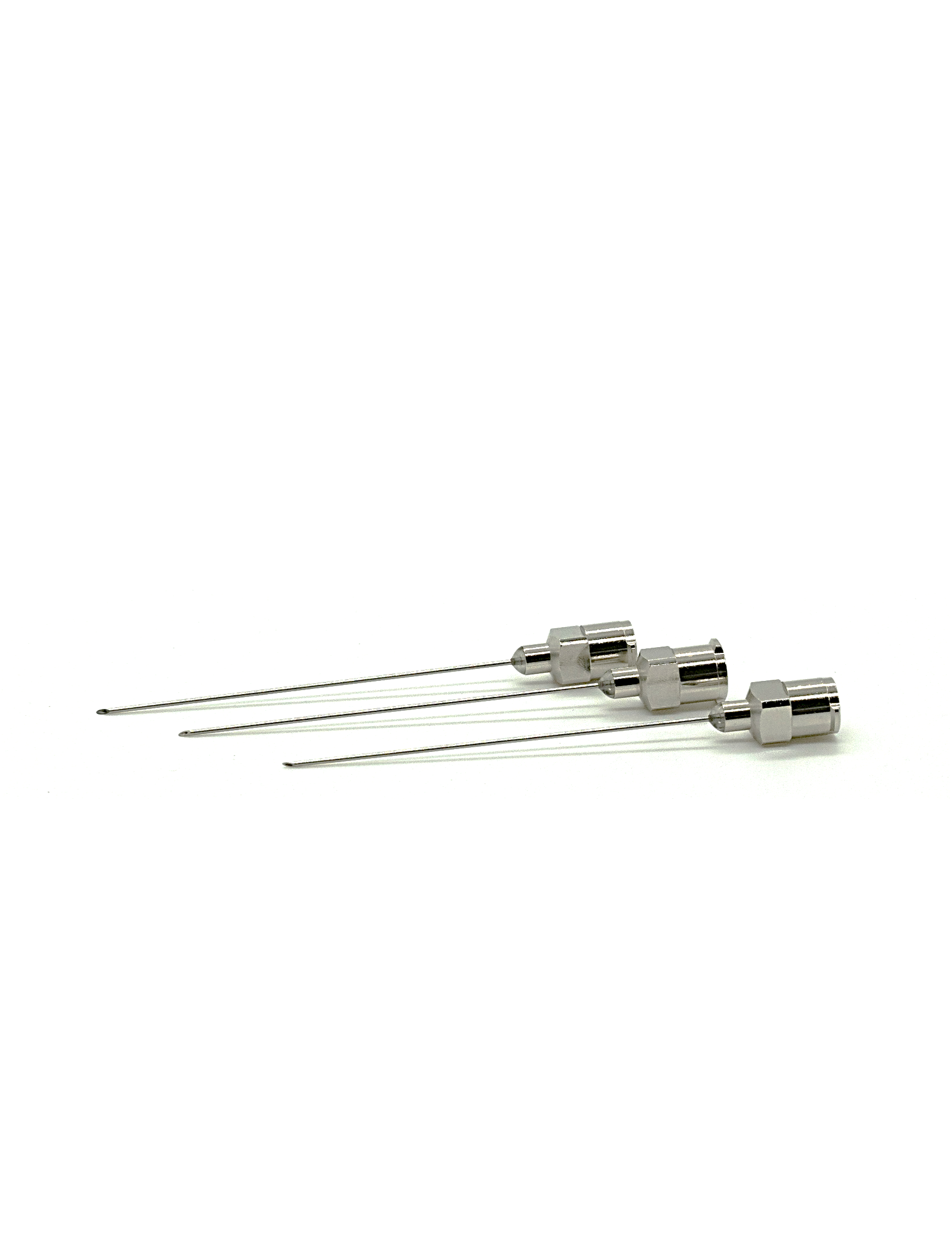

Luer Lock needles

Needle Length (mm) Needle Gauge Needle OD (mm) Needle Tip Qty P/N
50 23 0.63 Bevel 5 221-54778-51
50 19 1.07 Bevel 5 221-54778-52
50 14 2.1 Bevel 5 221-54778-54



Syringe valves for Luer Lock syringes.

Features:

  • Store and transport sample in syringe without risk of contamination
  • Easy and fast changing of luer lock needles
Syringe Volume Description P/N Pack Size
5 mL to 2 L Push Button Valve for Luer Lock Needle 221-54778-49 1
50 μL to 2 L Push Button Valve for Luer Lock Needle and Tip Syringe 221-54778-50 1
