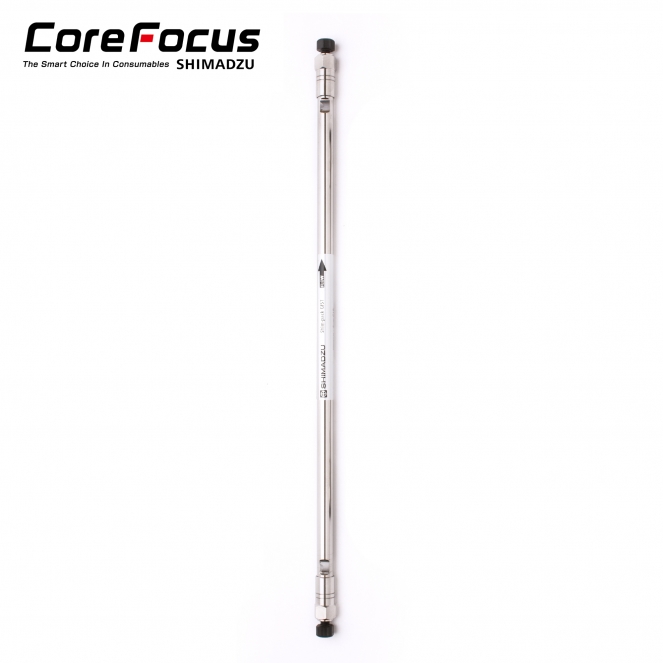

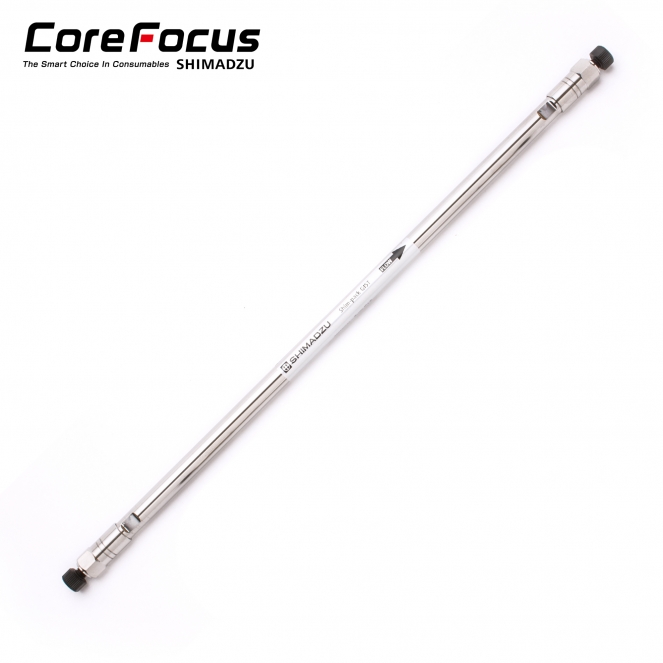

Shim-pack GIS C18-P, 3um, 4.6x250

Part Number: 227-30539-07

Particle size (µm): 3

ID (mm): 4.6

Length (mm): 250

USP: L1

Functional Group: C18-P

Mode: Reversed Phase

Type: Analytical column

Guard Column: 227-30550-01

Guard Column Holder: 227-30532-01

Pore size (nm): 10

Surface Area (m2/g): 450

End Capping: No

Carbon Load (%): 29

PH range: 2 - 7.5

Pressure Tolerance (MPa): 20

Related item: 227-30550-02

Pack size: 1

Column Name: GIS C18-P

Guard Column set: 227-30550-02

Shim-pack GIS C18-P is designed with a polymerically bonded octadecyl group, which provides high steric selectivity for separation of planar and non-planar compounds. It achieves complete baseline separation of structurally similar compounds such as vitamin D2 and D3 because of the planarity recognition capability.
Shim-pack GIS C18-P is also ideal for the HPLC analysis of 16 PAH compounds listed as target pollutants by the U.S. EPA.

Analysis Example
