226-50106-02_peek ferrule

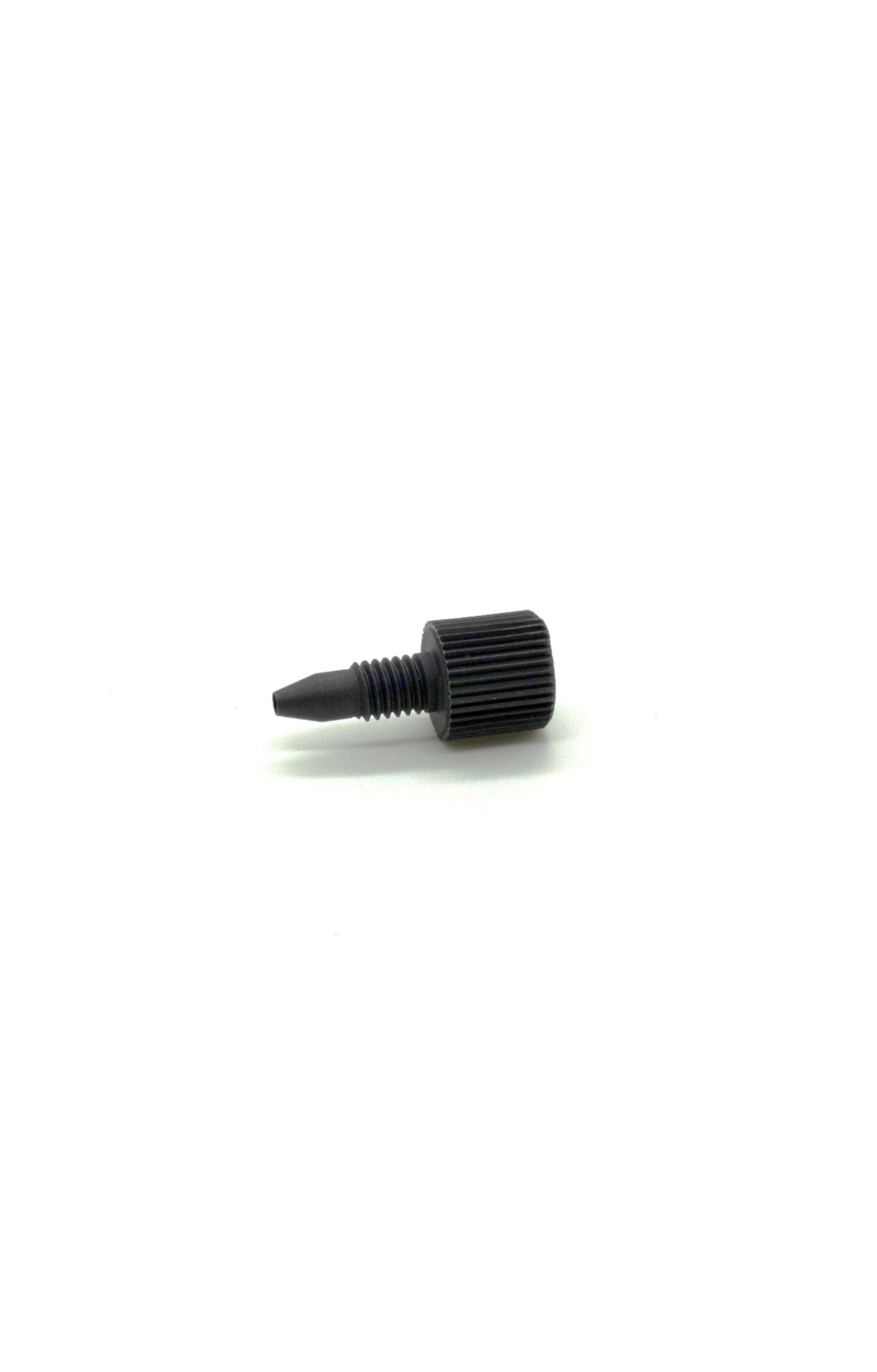

Finger 1 – Peek One piece, cone tip, 10-32 thread.

Part Number: 226-50106-10

Can be reused (re swaged): Yes

Pressure rating: 12,000 psi / 827 bar

Spanner tightened: Finger tightened with handheld tightening tool.

Tubing used on: S/S and PEEK

Suitable for: All fittings up to 12,000 psi. Good fitting for when you are in a hurry.

One or two piece system: Single piece PEEK

Pack size: 10

Pressure rating (psi): 12000

Pressure rating (bar): 827

  • Pressure rated up to 25,000 psi (1,720 bar)
  • Capable of up to ten repeat assembly cycles with no impact on pressure holding ability or carry-over;
  • Available in multiple threaded configurations for use with 1/16 in (1.6 mm) and 1/32 in (0.79 mm) OD tubing
  • Materials of construction: Stainless Steel and Proprietary PEEK™ polymer blend (PK)

The fittings are reusable when following the proper tightening torque specification. With a polymer front ferrule, there is no damage to the tubing or receiving port, also increasing the life of these components.
