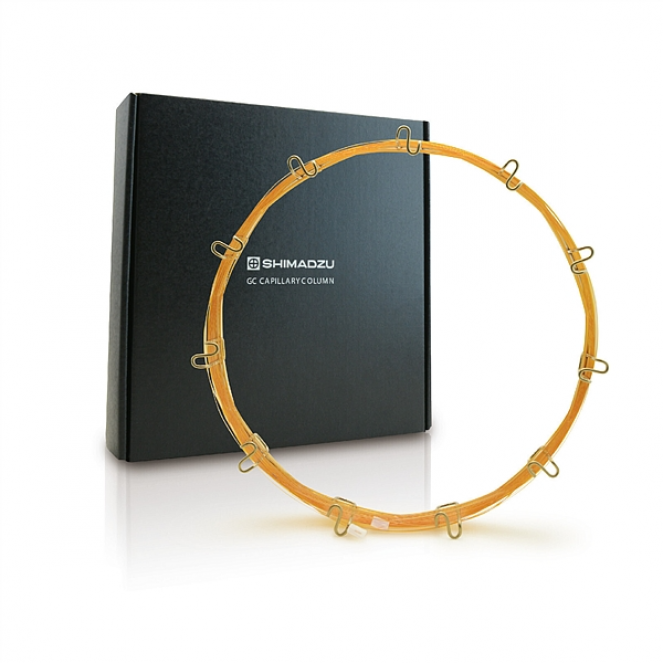

SH-1701 Cap. Column 0.25mm, 0.25μm, 30m w/5 m Integra-Guard Column

Part Number: 221-76185-30

Length (m): 30

ID (mm): 0.25

Film thickness (µm): 0.25

Column Specification: General-purpose

USP: G46

Phase: SH-1701

Composition: Crossbond 14% cyanopropylphenyl / 86% dimethyl polysiloxane

Polarity: Mid polarity

Temp. Range (℃): -20 to 280

Max. Temp (℃): 280

Content: 1 pc

Remark: with 5 m IntegraGuard Column

Lead Time: 3 - 5 weeks

  • Mid-polarity phase: Crossbond™ 14% cyanopropylphenyl / 86% dimethyl polysiloxane
  • General-purpose columns for alcohols, oxygenates, PCB congeners (e.g., Aroclor mixes), pesticides, and fragrance compounds.
  • Equivalent to USP G46 phase.
  • Similar phases: DB-1701P, DB-1701, CP Sil 19 CB, VF-1701ms, VF-1701 Pesticides, SPB-1701, Rtx-1701

Integrated Guard Columns

  • No leaks for a more robust method.
  • >No column connections for easier, faster maintenance.
  • No peak distortions due to connector dead volume and thermal capacity.

For column without Integral-Gaurd Column in this dimension, please refer to 221-75777-30
