GC Columns_1

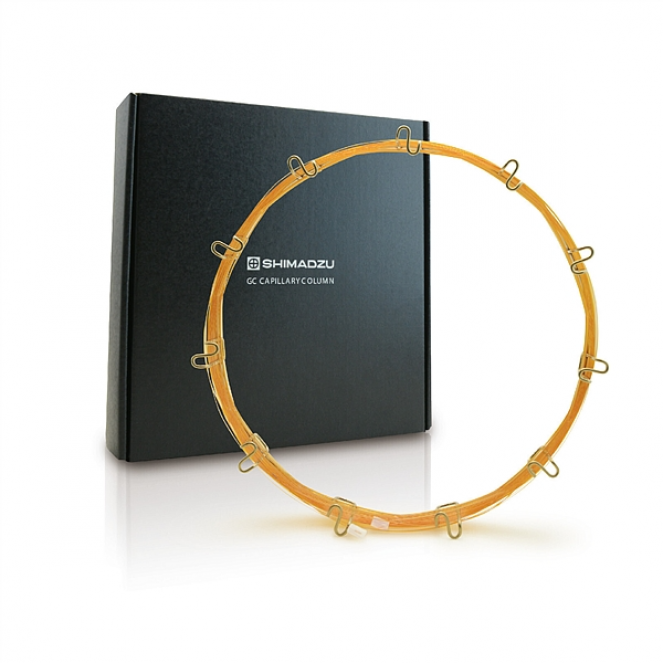

SH-1 Cap. Column 0.53mm, 1μm, 30m w/5 m Integra-Guard Column

Part Number: 221-75731-31

Length (m): 30

ID (mm): 0.53

Film thickness (µm): 1

Column Specification: General-purpose

USP: G1, G2, G38

Phase: SH-1

Composition: Crossbond 100% dimethyl polysiloxane

Polarity: Non-polar

Temp. Range (℃): -60 to 310/330

Max. Temp (℃): 310/330

Content: 1 pc

Remark: with 5 m IntegraGuard Column

Lead Time: 3 - 5 weeks

  • Non-polar phase: Crossbond™ 100% dimethyl polysiloxane
  • General-purpose columns for solvent impurities, PCB congeners (e.g., Aroclor mixes), simulated distillation, arson accelerants, gases, natural gas odorants, sulfur compounds, essential oils, hydrocarbons, semi-volatiles, pesticides, oxygenates.
  • Equivalent to USP G1, G2, G38 phases.
  • Similar phases: HP-1, DB-1, CP Sil 5 CB, SPB-1, Rtx-1


Integrated Guard Columns

  • No leaks for a more robust method.
  • No column connections for easier, faster maintenance.
  • No peak distortions due to connector dead volume and thermal capacity.

For column without Integra-Guard column, please refer to 221-75731-30
