APAIDX-U284

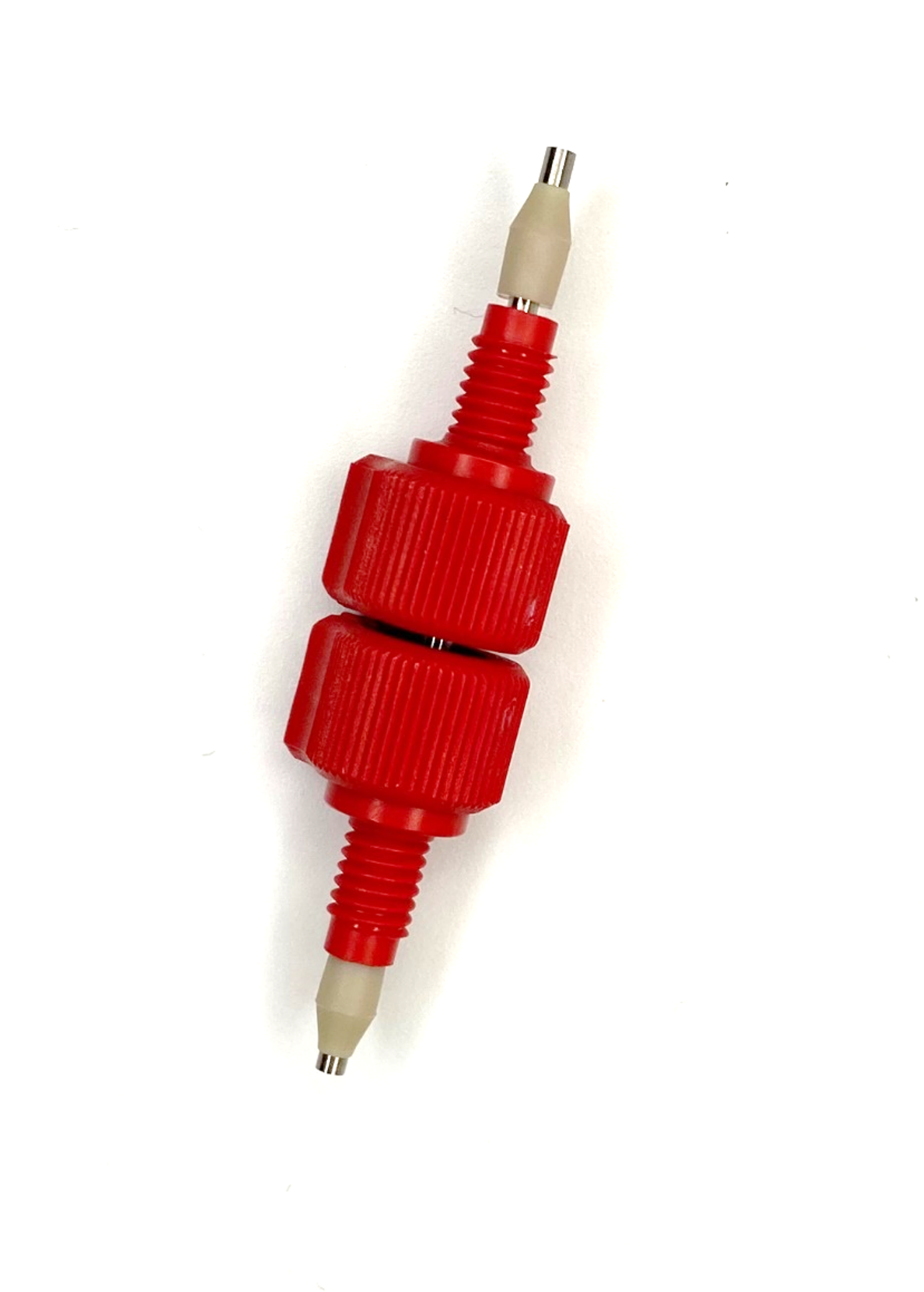

Column Coupler Delrin® (Swept Volume: 1.3 ul, Thru hole: 170 um)

Part Number: APAIDX-U284

Login to view price
IN STOCK
CHECK AVAILABILITY

Can be reused (re swaged): Yes

Pressure rating (psi): 5000

Pressure rating (bar): 345

Spanner tightened: Finger tightened.

Tubing used on: PEEK

Pack size: 1

Our Delrin Column Coupler delivers a low swept-volume connection while maintaining column efficiency. Our couplers are an excellent option for reducing overall flow path volume while coupling two devices together. It is manufactured from Delrin giving is excellent chemical resistance. It has a swept volume of 1.3uL,a thru-hole of .007 and a 10-32 coned port configuration. It comes with (2) F-200 Delrin Fittings.

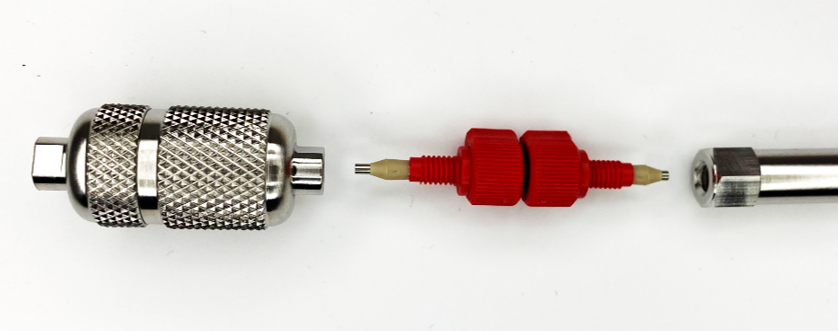

Below photo shows connection of Scepter column to guard holder using Delrin coupler.

Recommended Products

APAIDX-UPFS6125070

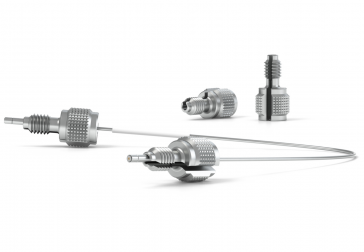

MarvelX SS 125µm ID X 70mm Length Kit

Part No.: APAIDX-UPFS6125070

Fittings

Easy-to-use MarvelX Stainless Steel UHPLC Connection Systems from IDEX Health & Science maintain zero dead volume and prevent peak tailing. Our stainless steel connection system has been expertly designed to allow for easier routing and superior re-usability throughout your instrument. Built with a convenient, removable fitting and changeable precision-cut flexible tubing, MarvelX can be used up to 100 times! It is compatible with 10-32 coned receiving ports for easy and repeatable finger-tight connections — no tool required. Thie kit is recommended to connect Scepter column to guard holder:

View product
