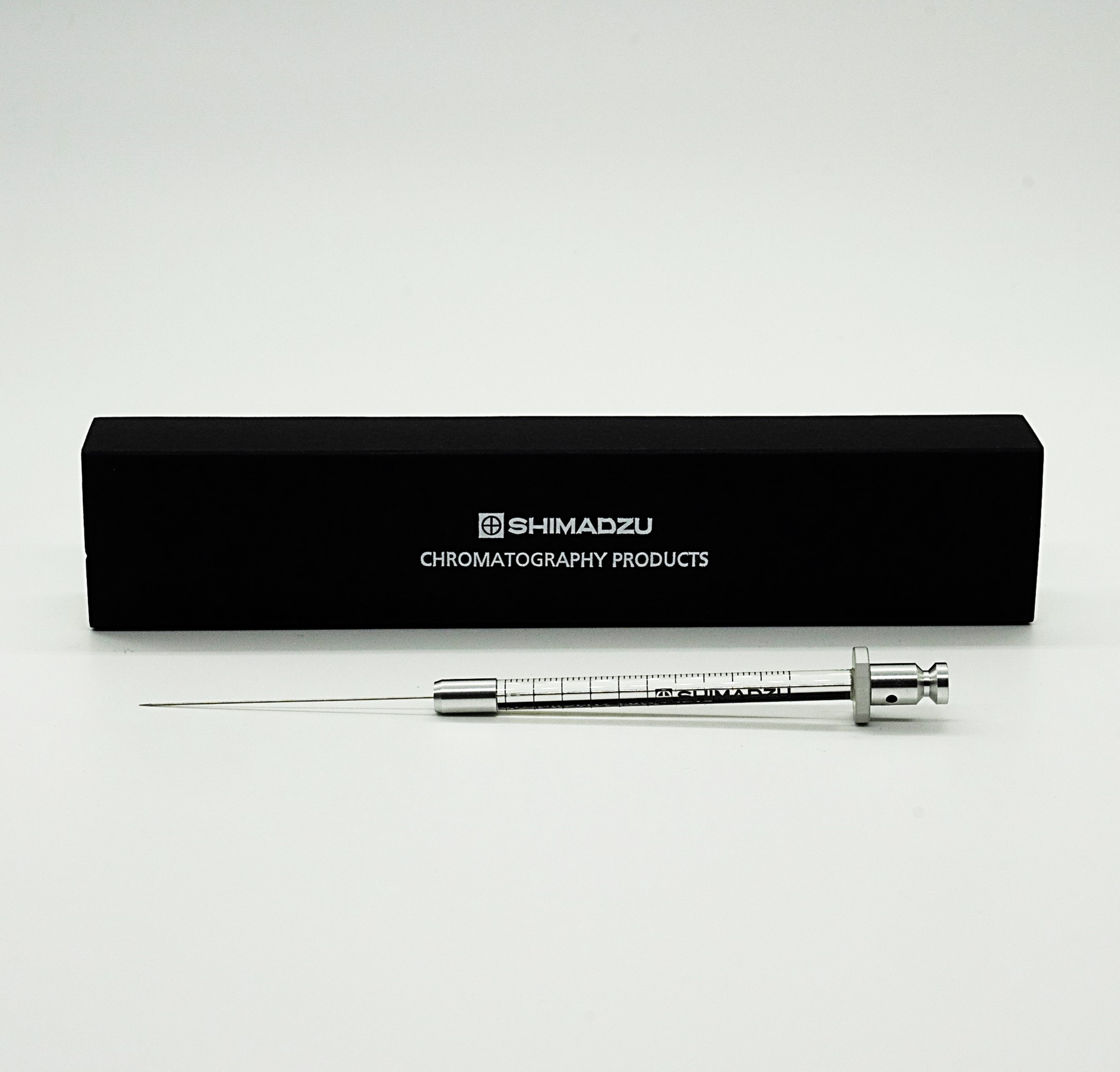

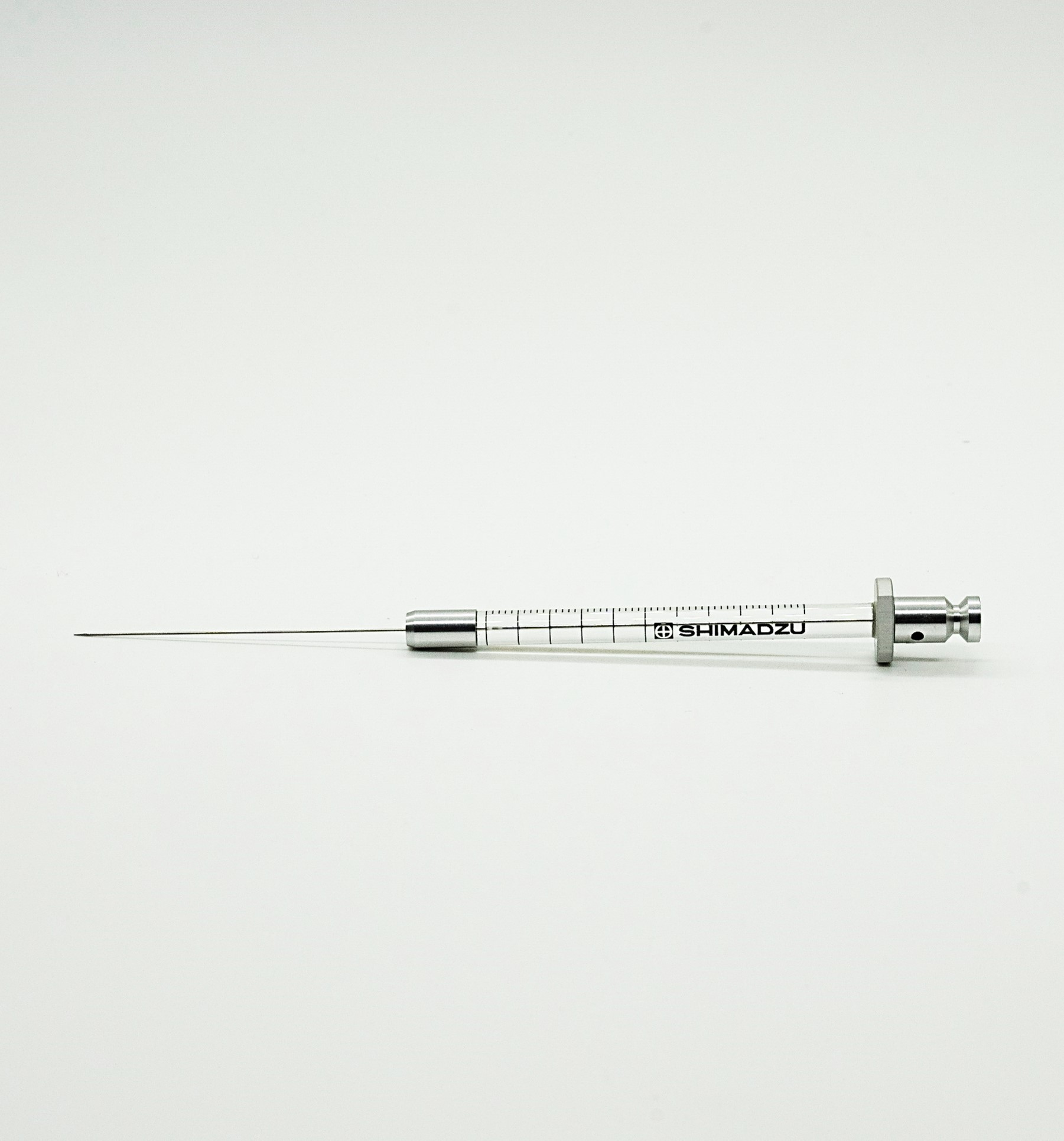

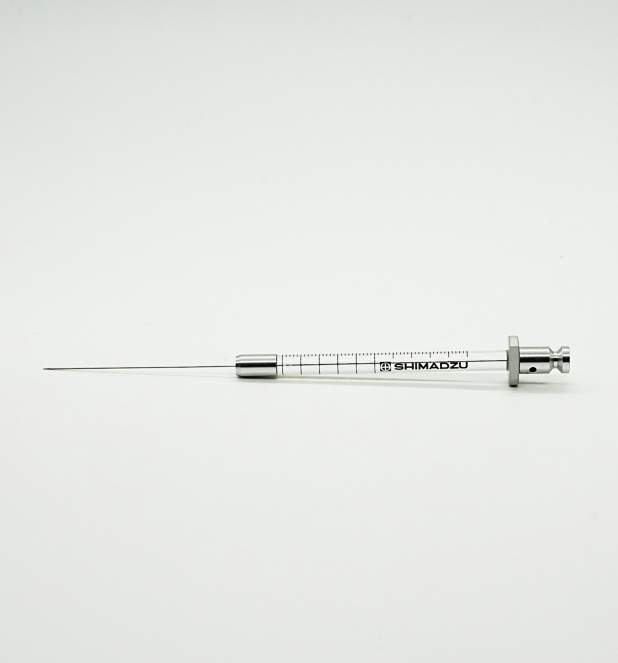

10F-AOC6-8.5/0.63C 10UL SYRINGE

Part Number: 227-37161-01

Type: Fixed Needle Syringe

Needle Tip Style: Cone

PTFE Tipped Plunger: No

Needle Length (mm): 85

Needle Gauge: 23

Needle OD (mm): 0.63

Usage: AOC-6000

Syringe Volume: 10 μL

Needle Length (): 85

Lead Time: 3 - 5 weeks

Syringe for AOC-6000, headspace (HS) injection



Syringe Volume PTFE Tipped Plunger Needle Length (mm) Needle Gauge Needle OD (mm) Needle Tip Part Number
1 μL - 57 23 0.63 Cone 225-19744-01
5 μL - 57 26 0.47 Cone 225-19744-02
5 μL - 57 23 0.63 Cone 227-37166-01
5 μL - 85 23 0.63 Cone 227-37160-01
10 μL - 57 26 0.47 Cone 225-19744-03
10 μL 57 26 0.47 Cone 225-19744-04
10 μL - 57 23 0.63 Cone 227-37167-01
10 μL - 85 23 0.63 Cone 227-37161-01
25 μL 57 26 0.47 Cone 225-19744-05
50 μL 57 26 0.47 Cone 225-19744-06
100 μL 57 26 0.47 Cone 225-19744-07
250 μL 57 26 0.47 Cone 225-19744-08
500 μL 57 26 0.47 Cone 225-19744-09
1 mL 57 23 0.63 Side Hole Dome 225-19744-10
2.5 mL 65 23 0.63 Side Hole Dome 225-19744-11
