Product Details

Shim-pack G_250mm_B
Shim-pack G_250mm_B
Shim-pack G_250mm_B
Shim-pack G_250mm_B

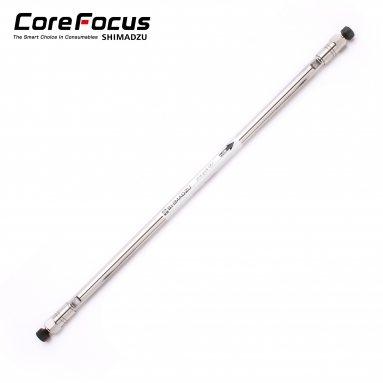

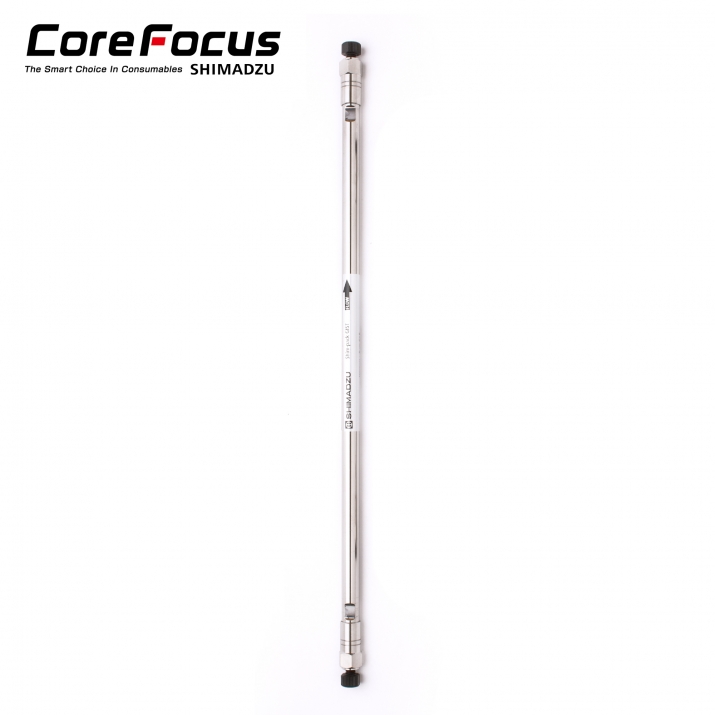

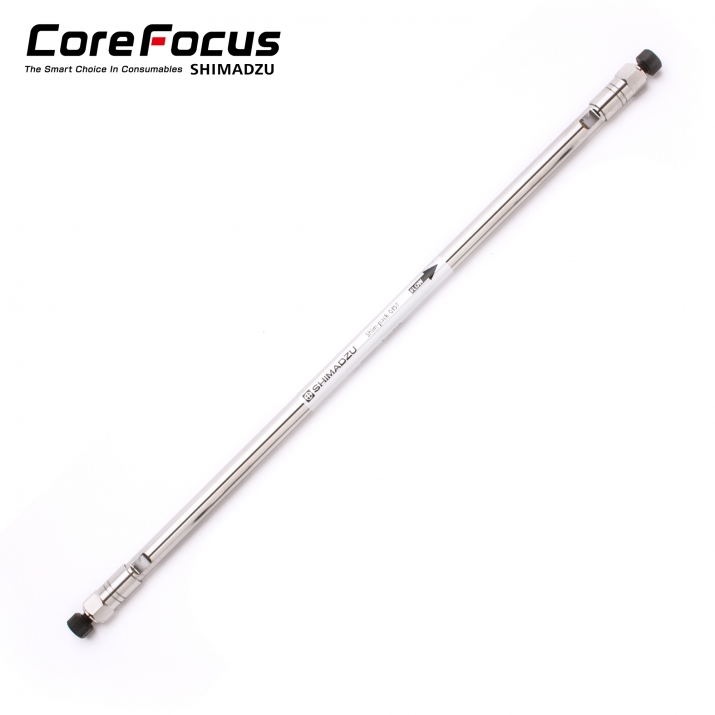

Shim-pack GIS HILIC, 3um, 1.5x250


Part Number: 227-30619-06

Particle size (µm): 3

ID (mm): 1.5

Length (mm): 250

USP: L20

Functional Group: Diol


Type: Analytical column

Guard Column: 227-30631-01

Guard Column Holder: 227-30532-01

Pore size (nm): 10

Surface Area (m2/g): 450

End Capping: No

Carbon Load (%): 20

PH range: 2 - 7.5

Pressure Tolerance (MPa): 20

Related item: 227-30631-02

Pack size: 1

Column Name: GIS HILIC

Guard Column set: 227-30631-02

Lead Time: 4 - 6 weeks

Ideal for the Separation of Highly Polar Basic Compounds

Shim-pack GIS HILIC is designed for Hydrophilic Interaction Liquid Chromatography (HILIC). It is chemically bonded with a diol group, which provides excellent peak shape for basic and neutral polar compounds.
In addition, HILIC is a variation of normal phase mode. It is capable of using organic solvents mixed with water as mobile phase, while normal phase mode uses non-aqueous organic solvents. In HILIC, the higher the organic concentration in the solvents, the greater is the retention of highly polar compounds.

Analysis Example
